Low shear polymer flooding valves
Technology and products
TYPHONIX polymer flooding valves
Cost reducing - full flow regulation - compact - tailor made for your assers
There is a large potential for cost reductions by optimizing the polymer injection system, without compromising footprint or flexibility. Compared to pumps and other standard flow control devices, a low shear valve design can significantly reduce costs related to polymer consumption and other OPEX expenses.
Polymer flooding
Polymer flooding is a widely used Enhanced Oil Recovery (EOR) method, used to extract immobile oil from a reservoir. One major challenge with polymers is that most EOR polymers are sensitive to shear degradation. If the polymer is degraded during injection, some of the EOR potential is lost. The most commonly used methods to compensate for viscosity loss during injection will increase OPEX. Therefore, a more cost effective approach is to use injection system components that result in low mechanical degradation.

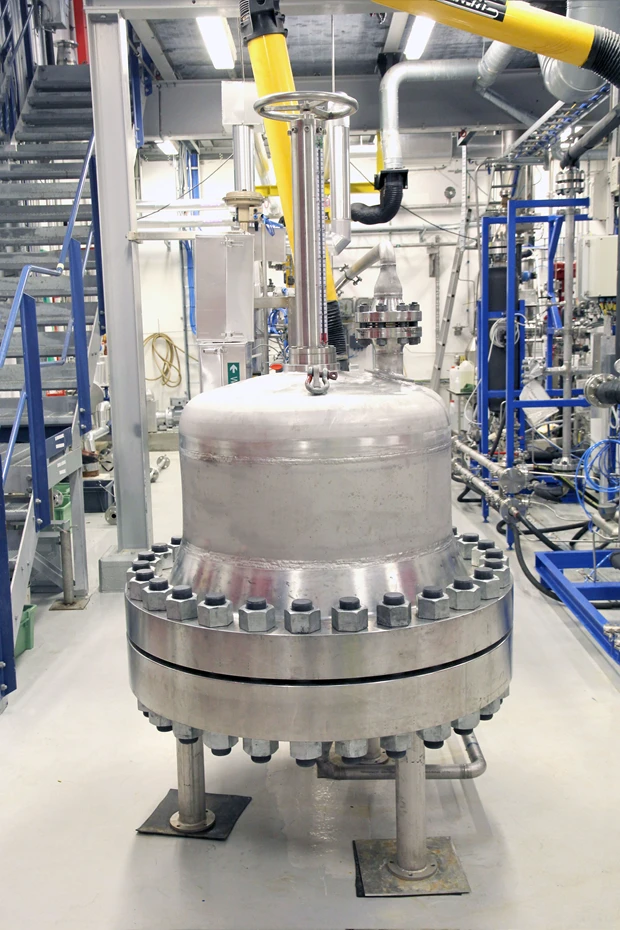

Typhonix polymer flooding valve
Together with Total, Vår Energi, Equinor, and OMV, Typhonix has developed a low shear valve for injection of polymer. Typhonix Polymer Flooding Valve is a compact and flexible valve that maintains the viscosity of the polymer solution during injection.
Compact design compared to coil based solutions:
- Lower impact on total footprint
- Easier transportation
- Easier to install on existing fields
- Flexible orientation (standing/laying)
- Easier frost-protection
Full controllability:
- Low shear performance is not affected by valve opening
- Enables flexible injection schemes
- Robust design (one central moving stem, same as in conventional plug-cage valves)
- Automatic actuation
Fully customizable:
- Capacity and low shear performance are design features, optimized for each application
- Performance guaranty and factory test provided
- Applicable on all polymer concentrations and viscosities
System and process benefits:
- Enable injection systems with minimum rotational equipment
- Low maintenance requirements
- Less energy consumption
- Pulse-damping effect
- No noise
The valve consists of flow channels with optimized geometry, gently throttling the polymer flow. The flow channels are arranged to allow for a compact design. The flow regulation principle of the low shear valve is the same as that of conventional plug-cage valves, allowing for full controllability without affecting the low shear performance. The geometry of the channels is a design factor, meaning that the valve can be designed according to each specific application. The valve can be used in both diluted and high concentration polymer applications.

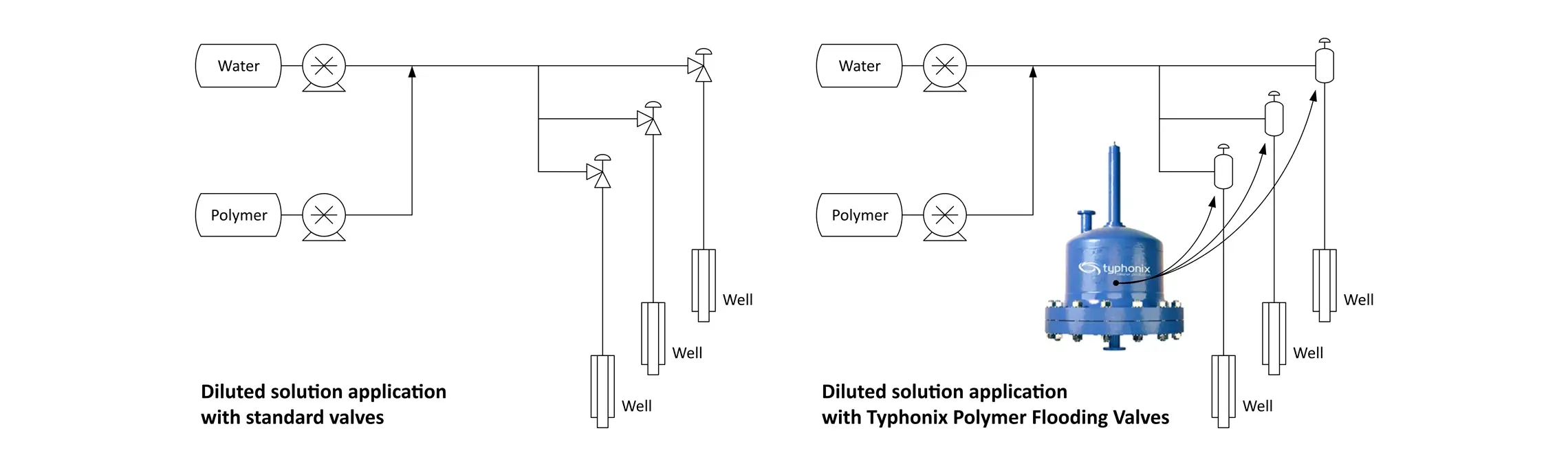

Diluted solution application
In the diluted polymer injection scheme, conventional valves often generate high shear during injection. The high shear rate results in reduced sweep efficiency in the reservoir, unless compensated by either 1) using a more expensive and shear stable polymer to reduce degradation, or 2) increasing the polymer concentration to compensate for the viscosity loss.

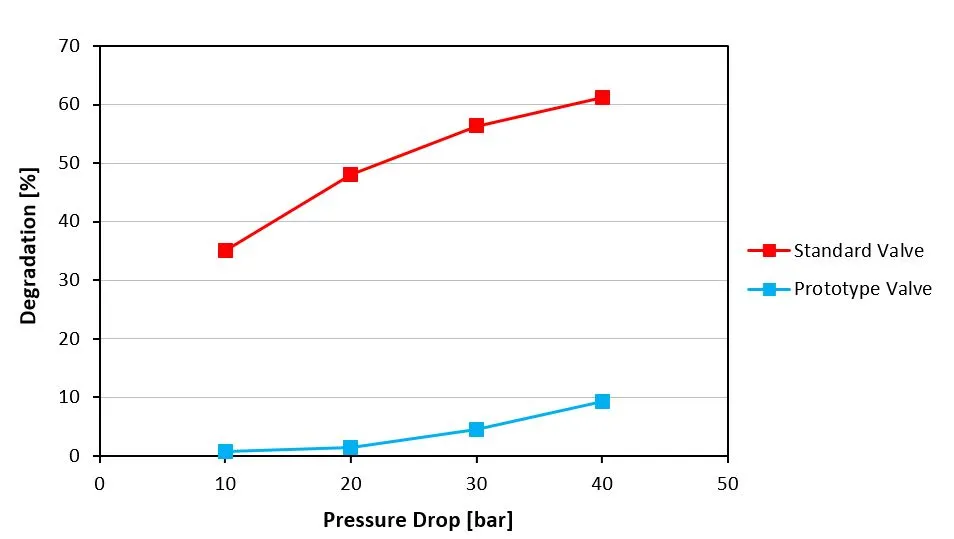

Typhonix Polymer Flooding Valve can replace conventional valves, and reduce the shear degradation. Results from the prototype test in a diluted application shows that the standard valve resulted in 35% to 60% viscosity degradation [1]. Typhonix Polymer Flooding Valve resulted in 1% to 10% viscosity degradation under the same conditions.
For some applications, using Typhonix Polymer Flooding Valve instead of a standard valve can reduce OPEX with $500*) per well, every day. This is because a 25% more expensive polymer is needed to compensate for the high shear of the standard valve.

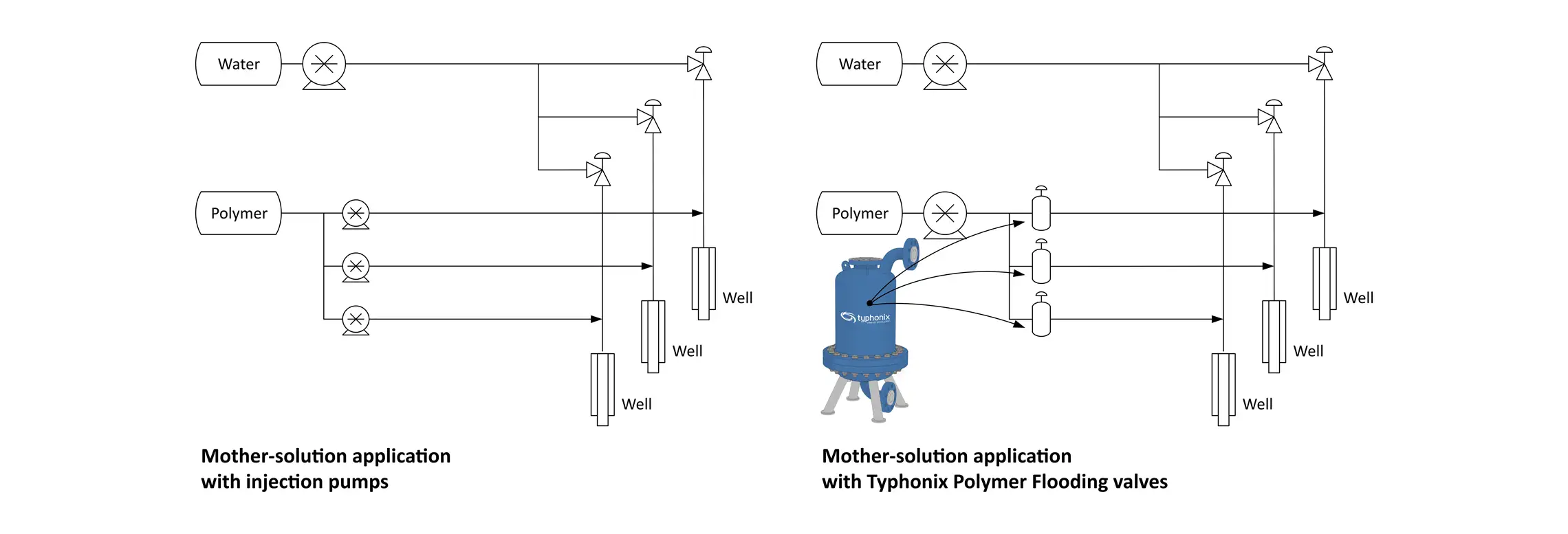

Mother solution application
In the mother solution injection scheme, one polymer injection pump is installed on each well to enable tailored viscosities. The injection system avoids viscosity loss by injecting a high concentration polymer solution downstream of the choke valve. However, one drawback of this setup is that maintenance and energy demands are usually higher than for a valve-based scheme.
Generally, when using Typhonix Polymer Flooding Valve in the mother solution application, the one pump-per-well injection scheme is replaced with a larger central pumping station plus one low shear valve per well to control the polymer injection rate. In this case, the low shear valve has the same low shear performance as the positive displacement pumps. However, compared to the one-pump per-well scheme, the central pumping station and low share valves will result in significantly lower maintenance costs and an overall lower energy consumption.

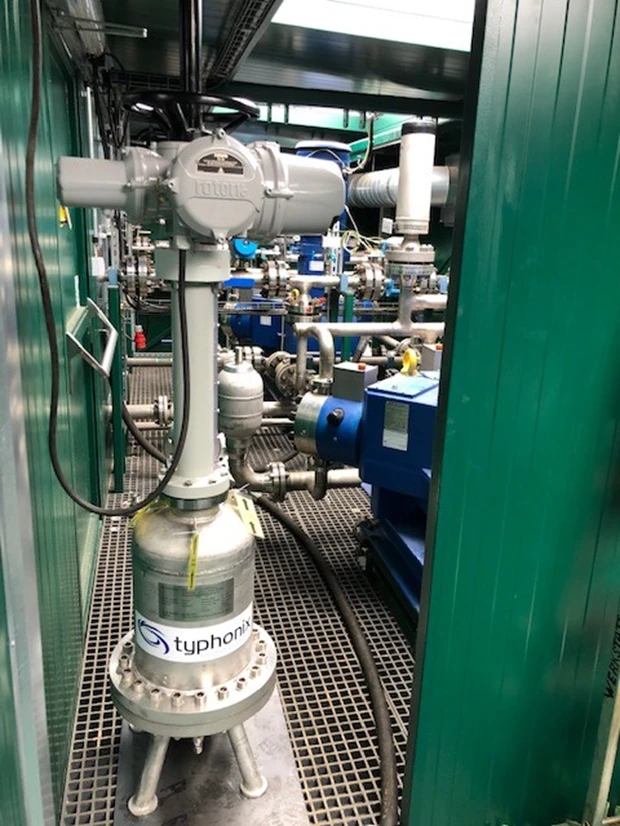

The low shear performance of the mother solution valve was demonstrated in a pilot test in 2020 [2]. The valve was installed on an existing high concentration mother solution flow line in a polymer field in Europa. Results from the pilot test verified the low shear performance of the valve, with only 2.7% viscosity loss up to 20 bar.
The pilot test together with the prototype results prove that the concept is a robust and well-understood low shear valve design suitable for both diluted and mother solution applications. In all applications, the low shear valve has been found to be robust, intuitive, and easy to install and operate.
More information
Discover the potential on your asset
The commercial version of Typhonix Polymer Flooding Valve is scheduled to be ready within 2021. Do not hesitate to contact Rune Husveg to discuss the potential of this technology on your asset.
*) Assuming one-valve-per-well injection scheme, injecting 500 kg per well, per day. $4/kg is assumed for Typhonix Polymer Flooding Valve, and $5/kg for the standard valve.
